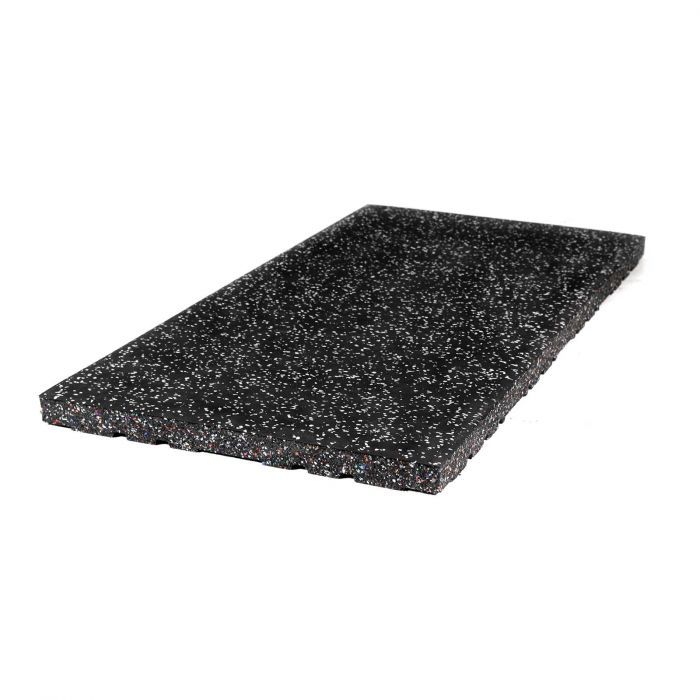

Origin 40mm High Impact Tile - 0.5 x 1m x 40mm

In stock
SKU
OF-CY-HI40-3-GRPD
Origin 40mm High Impact Tile - 0.5m x 1m x 40mm

Please be aware: a £40 surcharge is placed on top of delivery due to the size of item(s)

Grouped product items
Product Name Qty
Origin 40mm High Impact (1m x 0.5m x 40mm / 3mm Top Sheet) - Cuillin Black
OF-CY-HI40-3-B
£40.00
Out of stock
Origin 40mm High Impact (1m x 0.5m x 40mm / 3mm Top Sheet) -Slate: 15% Dark Grey Fleck
OF-CY-HI40-3-DGF
£40.00
Out of stock
Origin High Impact 40mm Fitness Tile (1m x 0.5m x 40mm / 3mm Top Sheet) - Stone: 15% Grey Fleck
OF-CY-HI40-3-GF
£40.00
Out of stock
Origin High Impact 40mm Fitness Tile (1m x 0.5m x 40mm / 3mm Top Sheet) - Inver: 10% Blue 10% Grey Fleck
OF-CY-HI40-3-BG10
£40.00
Origin High Impact 40mm Fitness Tile (1m x 0.5m x 40mm / 3mm Top Sheet) - Sandstone: 10% Red 10% Grey Fleck
OF-CY-HI40-3-RG10
£40.00
Origin High Impact 40mm Fitness Tile (1m x 0.5m x 40mm / 3mm Top Sheet) - Lowland: 10% Green 10% Grey Fleck
OF-CY-HI40-3-GNG10
£40.00
Origin 40mm High Impact (1m x 0.5m x 40mm / 3mm Top Sheet) - Skye: 65% Dark Blue 25% SBR Black 10% Light Blue
OF-CY-HI40-3-DBLB65
£40.00
Out of stock
Origin 40mm High Impact (1m x 0.5m x 40mm / 3mm Top Sheet) - Highland: 65% Dark Green 25% SBR Black 10% Light Green
OF-CY-HI40-3-DGNLGN65
£40.00
Out of stock
Origin 40mm High Impact (1m x 0.5m x 40mm / 3mm Top Sheet) - Cairn: 65% Dark Grey 25% SBR Black 10% Light Grey
OF-CY-HI40-3-DGLG65
£40.00
Out of stock
Origin High Impact 40mm Fitness Tile (1m x 0.5m x 40mm / 3mm Top Sheet) - 75% Red Fleck
OF-CY-HI40-3-RD85
£40.00
Out of stock
Origin High Impact 40mm Fitness Tile (1m x 0.5m x 40mm / 3mm Top Sheet) - 75% Grey Fleck
OF-CY-HI40-3-GY85
£40.00
Out of stock
Origin High Impact 40mm Fitness Tile (1m x 0.5m x 40mm / 3mm Top Sheet) - 75% Green Fleck
OF-CY-HI40-3-GN85
£40.00

Usage

The Origin 40mm High Impact Tiles can feature in almost any gym environment. However, the tiles have been designed for free-weight and strength & conditioning zones. These hard-wearing tiles will withstand both high footfall or impact.

  • Free-weight
  • Strength and Conditioning
  • Olympic Lifting

Construction

The heterogeneous (dual layer) construction of the tile is a 37mm recycled rubber base bonded to a 3mm EPDM top sheet. The base layer provides sound, impact and vibration reduction. The top sheet layer provides a dense, smooth, hard wearing surface. Together they make up an effective and functional free weight gym tile.

The tiles have a bevel on the edges which help to neutralize the effect of subfloor imperfections. The underside of the tile has channels which reduce weight and streamlines installation.

A 1m x 0.5m footprint ensures efficient installation and versatile layout options. 40mm thick tiles provide excellent performance and value.

Force Reduction

Force reduction is one of the most important factor when buying free weight flooring. The Origin High Impact Tiles have a force reduction of 51.7% in accordance to European standards (EN14809: 2005). This means the tiles will absorb impact ensuring a safe lifting environment.

Sound and Vibration Reduction

Free weight and Olympic lifting areas are often subject to persistent impact. The flooring must minimise sound and vibration to minimise disruption to surrounding areas. The Origin tiles feature these properties.

Installation - Joining Plates

Each tile accommodates joining plate connectors. This allows up to 12 connection points per tile. Connecting the tiles like this reduces any individual tile movement. The tile can be loose laid without connectors – though this may result in slight movement of tiles.

CAP System not included. Each tile requires 4 central and 2 outer connectors.

Installation – Bonded

The high impact tiles can also be bonded to the floor. This requires professional installation and sub floor preparations. See our sub floor preparation and installation guides for details.

More Information
Weight Approximately 20.3kg
Dimensions 40mm x 500mm x 1000mm (H x W x L)
Warranty Type Commercial Warranty
Materials Recycled Rubber Base with 3mm EPDM Top Sheet.
Commercial Warranty Details The Origin High Impact Tiles are covered by a limited manufacturers warranty for 7 years. The warranty is subject to the tiles being installed as per the installation guidelines. This warranty does not include wear and tear.
Flammability See downloads
Adhesive F58
Construction Heterogeneous (dual layer)
Installation Loose Laid with Tile Connectors, or Bonded
Footfall Usage High
Appearance Smooth, dense closed face
Density Approximately 1.015g / cm3
Bevel Yes
Flooring Type Tile
Dimension Tolerance +/- 0.5%
SKU OF-CY-HI40-3-GRPD
MPN CY-HI40-3-GRPD
Condition New
